Scraping Data

Last updated on 2025-06-25 | Edit this page

Overview

Questions

  • How do I avoid the tedium/error-prone-ness of clicking lots of links or making lots of API requests by hand?

Objectives

  • Use pagination to get all available data
  • Automatically download files from a long listing of links on a page

Introduction

Now we’ve learned about how to download data from websites and from APIs. But some questions linger…

  • often there are webpages with lots of links to data you want… copy-pasting each link into our code is a pain, and hardly better than just clicking each link to download the data. Is there a better way?

  • you might also remember seeing that ‘warning’ from the EIA API about only returning 5000 rows at a time… how can we get more?

The thread connecting these two questions/problems is that sometimes your data lives behind many URLs, not just one. So you have to go get a bunch of separate data and glue it all together.

Web scraping

Let’s start by downloading files from a webpage that has many links - the good old EIA website.

For all the benefits of the API, some of the EIA 923 data is only available through the downloadable spreadsheets - and the spreadsheets are only available by clicking through the list of links on the EIA 923 page:

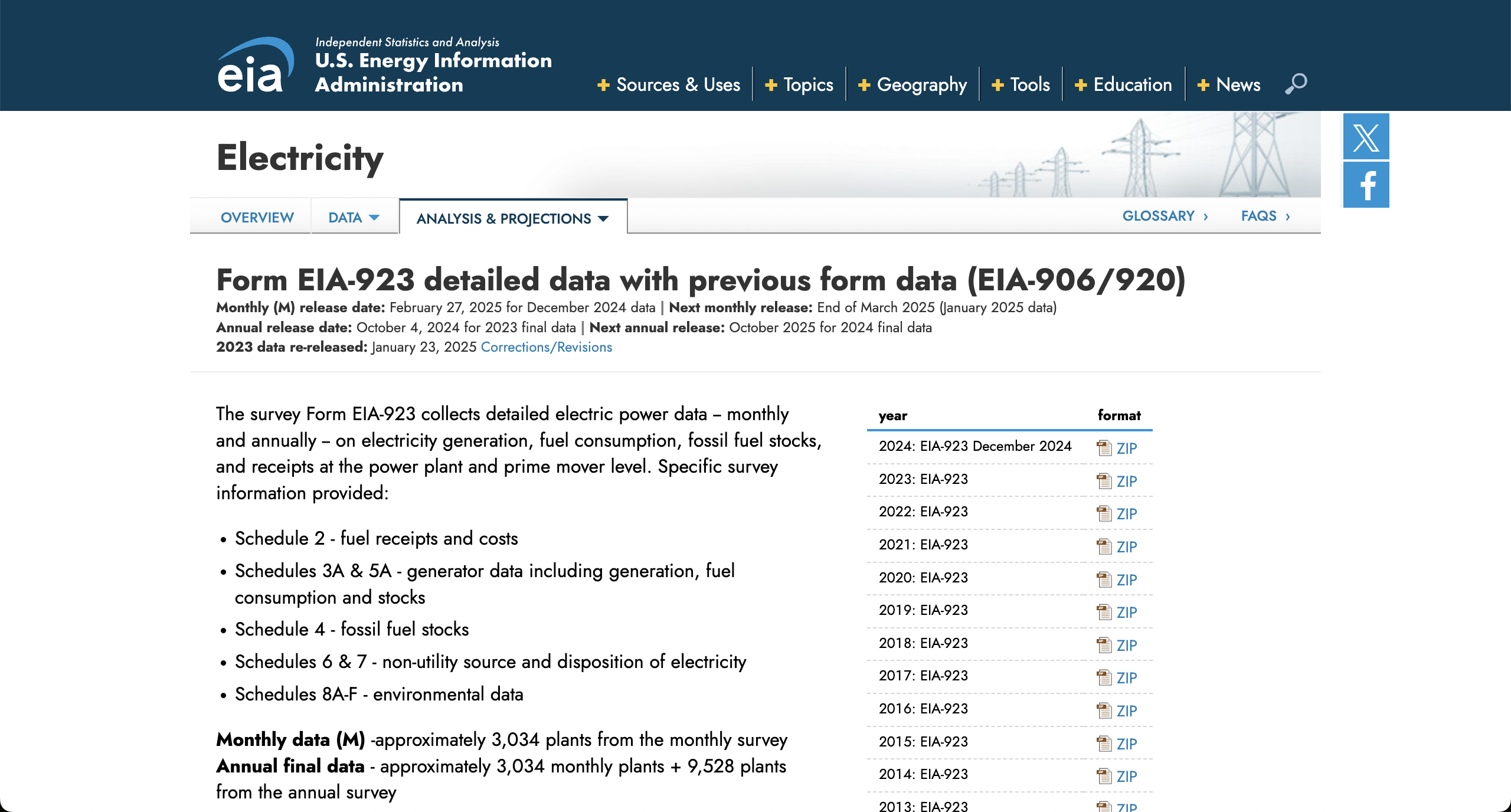

Screenshot of the EIA 923 data page. A listing of each year's files is in the right sidebar.
Screenshot of the EIA 923 data page. A listing of each year’s files is in the right sidebar.

There’s only a couple dozen, so we could probably get away with just downloading the files by clicking the links. But, you can imagine how it could quickly get out of hand with multiple pages or many more links. We’ll keep it simple for now and just stick with the EIA 923 page as an example.

Example: EIA 923/906

First, let’s import the libraries we’ll need to use. Of course we’ll use our workhorse requests. We’ll also need a library called “Beautiful Soup” that helps us work with website data in particular. It’s imported as bs4.

PYTHON

import bs4
import requests

# while we're doing the imports, might as well store the URL in a variable.
eia_923_url = "https://www.eia.gov/electricity/data/eia923/"

To get the links, first we need to get the webpage itself - that’s where the links are. Let’s see what the webpage looks like!

PYTHON

eia_923_response = requests.get(eia_923_url)
eia_923_response.text

OUTPUT

'<!doctype html>\r\n<html>\r\n\r\n<head>\r\n\t<title>\r\n\t\tForm EIA-923 detailed data with previous form data (EIA-906/920) -\r\n\t\tU.S. Energy Information Administration (EIA)\t</title>\r\n\t<meta property="og:title" content="Form EIA-923 detailed data with previous form data (EIA-906/920) - U.S. Energy Information Administration (EIA)">\r\n\t<meta property="og:url" content="https://www.eia.gov/electricity/data/eia923/index.php">\r\n\t<meta name="url" content="https://www.eia.gov/electricity/data/eia923/index.php">\r\n\t<meta name="description" content="Clean Air Act Data Browser" />\r\n\t...

OK, so that looks like some XML, which we saw a couple episodes ago - notice the many angle brackets containing words that seem to be trying to tell us something. We can use those tags to understand the content of the file, and then filter through it to find what we actually need.

This is actually a special type of XML called HTML, which is what most webpages are described in (see the doctype html tag). HTML is a vast and chaotic world, with exceptions to every rule. Fortunately, bs4 is here to help tame the chaos a bit. The core of the library is the BeautifulSoup class, which takes in a website’s HTML and adds some useful functionality to it:

PYTHON

eia_923_soup = bs4.BeautifulSoup(eia_923_response.text)

eia_923_soup

The first thing you’ll notice is that the output looks neater:

OUTPUT

<!DOCTYPE html>
<html>
<head>
<title>
		Form EIA-923 detailed data with previous form data (EIA-906/920) -
		U.S. Energy Information Administration (EIA)	</title>
<meta content="Form EIA-923 detailed data with previous form data (EIA-906/920) - U.S. Energy Information Administration (EIA)" property="og:title"/>

We’ll also be able to filter through this complicated set of tags.

PYTHON

eia_923_soup.find_all("title")

To get all the links, we need to get all the a tags - that’s where links in HTML usually live:

PYTHON

eia_923_all_a_tags = eia_923_soup.find_all("a")

OUTPUT

[<a name="top"></a>,
 <a href="http://x.com/eiagov/" target="_blank"><span class="ico-sticker twitter"></span></a>,
 <a class="addthis_button_tweet"></a>,
 <a href="https://www.facebook.com/eiagov" target="_blank"><span class="ico-sticker facebook"></span></a>,
 <a class="addthis_button_facebook_like at300b" fb:like:layout="button_count"></a>,
 ...
 <a class="ico zip" href="xls/f923_2024.zip" title="2024"><span>ZIP</span></a>,
 <a class="ico zip" href="archive/xls/f923_2023.zip" title="2023"><span>ZIP</span></a>,
 <a class="ico zip" href="archive/xls/f923_2022.zip" title="2022"><span>ZIP</span></a>,
 <a class="ico zip" href="archive/xls/f923_2021.zip" title="2021"><span>ZIP</span></a>,
 <a class="ico zip" href="archive/xls/f923_2020.zip" title="2020"><span>ZIP</span></a>,
 ...

OK, so we see a big list of tags, some of which appear to be links to form 923 ZIP files. The URLs for those are included in an href attribute. Almost every URL you’ll want to use will live in one of these href attributes.

We can filter based on attributes like this:

PYTHON

eia_923_a_hrefs = eia_923_soup.find_all("a", href=True)

This shows us only the a tags with hrefs defined:

OUTPUT

[<a href="http://x.com/eiagov/" target="_blank"><span class="ico-sticker twitter"></span></a>,
 <a href="https://www.facebook.com/eiagov" target="_blank"><span class="ico-sticker facebook"></span></a>,
 <a class="eia-accessibility" href="#page-sub-nav">Skip to sub-navigation</a>,
 <a class="logo" href="/">
 <h1>U.S. Energy Information Administration - EIA - Independent Statistics and Analysis</h1>
 </a>,
 <a class="nav-primary-item-link menu-toggle" href="javascript:;">

And then you can filter those only for the ones that point at actual ZIP files:

PYTHON

eia_923_zip_tags = []
for a in eia_923_a_hrefs:
    if a["href"].lower().endswith(".zip"):
        eia_923_zip_tags.append(a)
eia_923_zip_tags

OUTPUT

[<a class="ico zip" href="xls/f923_2024.zip" title="2024"><span>ZIP</span></a>,
 <a class="ico zip" href="archive/xls/f923_2023.zip" title="2023"><span>ZIP</span></a>,
 <a class="ico zip" href="archive/xls/f923_2022.zip" title="2022"><span>ZIP</span></a>,
 <a class="ico zip" href="archive/xls/f923_2021.zip" title="2021"><span>ZIP</span></a>,
 ...
 <a class="ico zip" href="archive/xls/f906920_2003.zip" title="2003"><span>ZIP</span></a>,
 <a class="ico zip" href="archive/xls/f906920_2002.zip" title="2002"><span>ZIP</span></a>,
 <a class="ico zip" href="archive/xls/f906920_2001.zip" title="2001"><span>ZIP</span></a>,
 <a class="ico zip" href="archive/xls/f906nonutil2000.zip" title="2000"><span>ZIP</span></a>,
 <a class="ico zip" href="archive/xls/f906nonutil1999.zip" title="1999"><span>ZIP</span></a>,
 <a class="ico zip" href="archive/xls/f906nonutil1989.zip" title="1989-1998"><span>ZIP</span></a>]

We probably want to skip those Form 906 links too.

PYTHON

eia_923_zip_tags = []
for a in eia_923_a_hrefs:
    if a["href"].lower().endswith(".zip") and "f923" in a["href"]:
        eia_923_zip_tags.append(a)
eia_923_zip_tags
Challenge

Challenge: get all the relevant a tags from EIA 906

Lots of the data that is collected in EIA 923 was collected in EIA 906 in the past.

We’ll have you work through the scraping steps on the 906 data to get a sense of how this all works.

Let’s get the relevant a tags from the EIA 906 page:

Start with the skeleton code outlined below - we expect a variable called eia_906_xls_tags at the end, which holds all the tags that refer to the actual 1970-2000 data files.

PYTHON

eia_906_url = "https://www.eia.gov/electricity/data/eia923/eia906u.php"
# get the page contents
# turn it into a collection of tags
# filter them down to the tags that contain the links to XLS data - for all years 1970-2000

eia_906_xls_tags = []

PYTHON

eia_906_url = "https://www.eia.gov/electricity/data/eia923/eia906u.php"
eia_906_response = requests.get(eia_906_url)
eia_906_soup = bs4.BeautifulSoup(eia_906_response.text)

eia_906_a_hrefs = eia_906_soup.find_all("a", href=True)
eia_906_xls_tags = []
for a in eia_906_a_hrefs:
    if ".xls" in a["href"].lower():
        eia_906_xls_tags.append(a)

Downloading the data

OK, now we have our tags, time to use them to download the data! Let’s try it with one tag first:

PYTHON

eia_906_one_link = eia_906_xls_tags[0]
eia_906_one_response = requests.get(eia_906_one_link["href"])

Oh no! We get an error:

OUTPUT

MissingSchema: Invalid URL '/electricity/data/eia923/archive/xls/utility/f7592000mu.xls': No scheme supplied. Perhaps you meant https:///electricity/data/eia923/archive/xls/utility/f7592000mu.xls?

Looks like the URL in the href is incomplete. It turns out that this is a relative path - much like the relative paths you had to deal with when loading data on your computer. The full URL we want is https://www.eia.gov/electricity/data/eia923/archive/xls/utility/f7592000mu.xls - which combines the URL of the page we got the link from (https://www.eia.gov/electricity/data/eia923/eia906u.php) with the fragment we got in the href (/electricity/data/eia923/archive/xls/utility/f7592000mu.xls).

This is a super common thing to have to do, so there’s a useful bit of the Python standard library for this: urllib.parse.urljoin:

from urllib.parse import urljoin

eia_906_one_full_url = urljoin(eia_906_url, eia_906_one_link["href"])
eia_906_one_response = requests.get(eia_906_one_full_url)

We can also do the string concatenation ourselves with eia_906_url + "...", but there are a surprising amount of details to get wrong here so it’s nice to just use the function that works.

Finally, we can take a look at the actual dataframe using pandas:

PYTHON

import pandas as pd

eia_906_one_df = pd.read_excel(eia_906_one_response.content)

Note that we use .content here instead of .text - this is because an Excel file is not designed to be read directly as text.

You can bypass this manual download-then-read process, actually, with pd.read_excel - it can handle reading directly from a URL:

PYTHON

eia_906_one_df = pd.read_excel(eia_906_one_full_url)
Challenge

Challenge: get the Form 906 file contents

OK, so now we know how to scrape a bunch of URLs from a webpage. Let’s read the Form 906 files into our program! Since they’re XLS files, we can read them directly from a URL using pandas.read_excel.

Try making a list, eia_906_dataframes, that includes all of the data files from the EIA 906 page - start with the (minimal) scaffold below!

PYTHON

import pandas as pd

eia_906_dataframes = []

# loop through the eia_906_xls_tags and make a pd.DataFrame for each one

PYTHON

for a in eia_906_xls_tags:
    full_url = urljoin(eia_906_url, a["href"])
    eia_906_dataframes.append(pd.read_excel(full_url))

Once we’ve completed the challenge above, we have a list of a bunch of dataframes. To bring them all into one dataframe, we can use pd.concat, which “concatenates” several dataframes together:

PYTHON

mega_906 = pd.concat(eia_906_dataframes)

If you use DataFrame.info() you can quickly see that some columns (YEAR, FIPST, UTILNAME) are more populated than others (MULTIST, GEN01, etc):

PYTHON

mega_906.info()

And if you start to dig into the data a bit, such as pulling out the various values of YEAR, you see that you have plenty of data cleaning to do before this is really usable for analysis. But at least you have all of the data in one dataframe now! We’ll go over some more tips for exploratory data analysis in the next episode.

PYTHON

mega_906.YEAR.value_counts()

OUTPUT

YEAR
96      10507
97      10468
1999    10296
2000     9617
74       6429
73       6363
75       6362
76       6307
72       6198
71       6130
70       6100
81       5692
85       5692
80       5678
82       5669
84       5661
83       5650
87       5647
86       5634
77       5627
78       5594
79       5554
98       5470
89       5263
88       5241
95       5119
1998     5118
93       5109
91       5107
94       5102
92       5100
90       5074
99         40
0          14
Name: count, dtype: int64
Discussion

Why might you choose to do all this instead of just manually collecting links?

  • If it’s a lot of effort to get to each link
  • If the data is frequently updated
  • If I have to download all the files multiple times
  • If I have to combine everything into one big dataset programmatically anyways

Pagination

Another time you’ll need lots of URLs is when APIs don’t give you everything all at once. Let’s look at an example request to the EIA API we saw last time:

PYTHON

eia_api_base_url = "https://api.eia.gov/v2/electricity"
api_key = "3zjKYxV86AqtJWSRoAECir1wQFscVu6lxXnRVKG8"

first_page = requests.get(
    f"{eia_api_base_url}/facility-fuel/data",
    params={
        "data[]": "generation",
        "facets[state][]": "PR",
        "sort[0][column]": "period",
        "sort[0][direction]": "desc",
        "sort[1][column]": "plantCode",
        "sort[1][direction]": "desc",
        "api_key": api_key
    }
).json()["response"]

There’s a lot of info in here so let’s just look at the keys to start.

PYTHON

first_page.keys()

The data lives in the "data" key, so let’s take a quick look at that:

PYTHON

pd.DataFrame(first_page["data"])

Seems like it’s sensible data, but 5000 rows is a suspiciously round (and small) number. Is there anything funny going on?

Ooh! There’s a warning - what is it?

PYTHON

first_page["warnings"]
The API can only return 5000 rows in JSON format.  Please consider constraining your request with facet, start, or end, or using offset to paginate results.

So if we want a dataset that’s bigger than 5000 rows, we’ll need to make multiple requests. Instead of scraping many URLs from a page, we’ll be generating the URLs ourselves.

This process of “get N rows, then the next N rows, etc.” is called “pagination” - like going to the next page of Google results.

We’ll go to the docs to look at this offset parameter:

Offset stipulates the row number the API should begin its return with, out of all the eligible rows our query would otherwise provide.

[…]

https://api.eia.gov/v2/electricity/retail_sales/data?api_key=xxxxxx&data[]=price&facets[sectorid][]=RES&facets[stateid][]=CO&frequency=monthly&sort[0][column]=period&sort[0][direction]=desc&offset=24

In the above example, the API will skip over the first 24 eligible rows (offset=24), which translates into 24 months (frequency=monthly).

Let’s try using that. First, let’s pull the common parameters into a variable so it’s a little easier to work with:

PYTHON

common_params = {
    "data[]": "generation",
    "facets[state][]": "PR",
    "sort[0][column]": "period",
    "sort[0][direction]": "desc",
    "sort[1][column]": "plantCode",
    "sort[1][direction]": "desc",
    "api_key": api_key
}

next_page = requests.get(
  f"{base_url}/facility-fuel/data", params=common_params | {"offset": 5000}
).json()["response"]

If we look at that we can see that we do indeed get the next several months of data:

PYTHON

pd.DataFrame(next_page["data"])

And if we wanted to grab the first 5 pages, we could use a for loop combined with the range() function.

range() is super useful - at its simplest, it just produces, well… a range of numbers.

PYTHON

for i in range(5):
    print(i)
    # actually get the page here...

If you want to start at a specific number, you can do something like:

PYTHON

for i in range(10, 15):
    print(i)

And if you want to count in different increments, you can do:

PYTHON

for i in range(0, 15, 5):
    print(i)

:::: challenge: range

If you wanted to set a fresh offset for every page in a number of rows, how would you do that? Imagine there are 23,456 rows and each page must be 5000 rows long.

PYTHON

total_rows = 23_456
page_size = 5000

for offset in range(0, total_rows, page_size):
  print(offset)

::::

How many rows to get?

Now that we know how to get multiple pages, we need to know when to stop getting more pages.

Broadly, there are two strategies:

  • figure out the total number of results ahead of time, and do some math to figure out how many pages to request
  • keep getting more pages until you run out of results

Both work, and each has its own downsides:

  • the first method only works for APIs that tell you how many results there are.
  • the second method can lead to infinite loops if you mess up.

Since the EIA API tells you how many results there are, let’s work with the first option.

Let’s look at the API response again.

PYTHON

first_page.keys()

That “total” field looks pretty suspicious.

PYTHON

first_page["total"]

So there are about 8,000 rows in this dataset. That’s the last piece you need to be able to do this challenge!

Challenge

Challenge: pagination

OK, now let’s put it all together!

Let’s try to get the net generation data in Puerto Rico that is in the EIA API.

Start with the following code and modify it to work:

PYTHON

all_records = []
# loop through the necessary pages
    print(f"Getting page starting at {offset}...")
    page = requests.get(
      f"{eia_api_base_url}/facility-fuel/data",
      params={
        # what goes here?
      }
    ).json()["response"]
    all_records.append(pd.DataFrame(page["data"]))

df = pd.concat(all_records)

PYTHON

all_records = []
for offset in range(0, 12_345, 5000):
    print(f"Getting page starting at {offset}...")
    page = requests.get(
      f"{eia_api_base_url}/facility-fuel/data",
      params=common_params | {"offset": offset}
    ).json()["response"]
    all_records.append(pd.DataFrame(page["data"]))

df = pd.concat(all_records) # combines all pages into one big dataframe

Further resources

We’ve only just scratched the surface of programmatically getting data from the Internet here. Sometimes, there are obstacles. We can’t teach you how to overcome all of them, but here is a little troubleshooting guide of “something weird? maybe try searching for these keywords.”

  • Links not showing up in your bs4 a tags?
    • look at the links using the html inspector in your browser dev tools.
    • look at what’s happening when you download files by using the network tab of your browser dev tools.
      • when you click something to download data, or when you load in data for a graph, keep an eye on this. you might find some suspicious looking URLs
  • The HTML you see in browser dev tools is different from what you get from requests?
    • sometimes there’s code that your browser runs after the initial load, which changes the HTML after the fact. requests won’t catch that, but try playwright which runs that post-load code. keyword is headless browser automation.
    • sometimes servers will be mean to you because of who you say you are (user agent).
      • sometimes they’ll give you some sort of error, or a CAPTCHA
      • sometimes they will just not give you any response at all
      • If you suspect that… try telling them you’re a real human instead of a bot. Look for “spoofing the user agent” to see guides on how to do this.
  • Running into rate limits for making too many requests?
    • Try adding some delays in your scraping code so that it’s not hammering the server so hard. The time.sleep method here is your friend.
    • Do double-check the terms & conditions of the website you’re using - if a website is implementing some rate limit, they probably don’t want you using automated tools to download the data in the first place.
    • You might need a ‘web scraping proxy’ service, which will let you get around a lot of limits.
  • Have to download a file to disk instead of turning it into a DataFrame immediately?
    • Use response.content to get the literal bytes that the response is made of - this will help with files like ZIP files that don’t have a nice text representation.
    • Then use the “wb” mode (“write binary”) to write that data to disk:

    PYTHON

    with open(some_filename, "wb") as f:
    f.write(response.content)
Key Points
  • beautiful soup lets you grab links out of a webpage so that you can then download them
  • if you need to get more than one request worth of results from an API, they usually provide some “pagination” capabilities so you can make all the requests programmatically.
  • web scraping is a wide world - if you get stuck, try searching for some of the keywords above.
